    Product Display
    Product
    • Product Features
    • Standard configuration
    • Specification parameters


    Two-speed   traveling,four-wheel drive and front axle foating of the whole machine.
    Powerful   diesel enginewith a maximum gradient of 45%.
    With load   sensing system and fault diagnosis system.
    With emergency   pump,emergency lowering and recovery of boom.
    Screw-type   engine tray, turntable with locking mechanism.



    Proportional   controlEmergency   platform loweringAuto-leveling
    Self-locking   doorTubing   explosion-proof Foot switch
    Full height   driveDiagnostic systemLoad sensing system
    Foam tiresTilt protectionHand brake release
    Two-wheel   driveAction buzzerLanyard attachment   points
    Four-wheel   steerElectric hornTie-down and lifting   points
    Automatic   brakingTime countEmergency stop
    Flashing   beaconsCharge protectionMaintenance-free   batteries
    Rental   management platformGPS

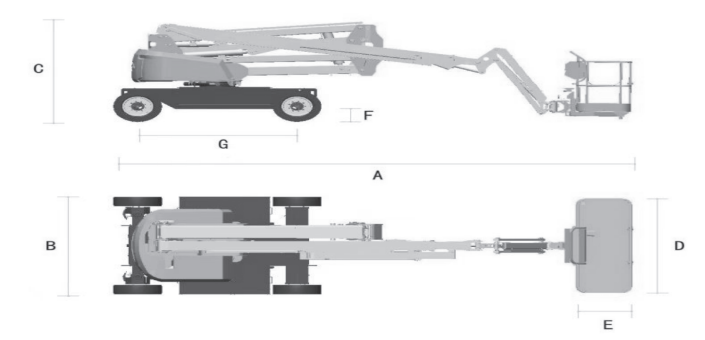

    ModelAB16F
    SizeMetric
    Maximum Platform height 16 m
    Maximum   horizontal reach10 m
    Up and over   clearance max.7.65 m
    Machine Length7.56 m
    Machine   Width 2.32m
    Machine Height2.39 m
    Platform   dimensions (length×width)1.8×0.76 m
    Ground   clearance-center0.3 m
    Wheelbase2.35 m
    Tire size33x12-20
    Productivity
    Working load230 kg
    Working load -   restricted350kg
    Max. platform   occupancy2
    Gradeability -   stowed45%
    Drive speed -   stowed4.8 km/h
    Drive speed -   raised0.8 km/h
    Turning radius   (inside/outside) 2/4.9 m
    Tilt sensor activation (front to back/side to side)
    Turntable   rotation360°
    Platform   rotation160°
    Turntable   tailswing0m
    PowerKubota 36kw
    Hydraulic tank   capacity/Fuel volume65L
    Weight8400 kg
