With 48V Dc battery pack, full scale handle control, thumb rocker steering,with functions of performing

confrmation, tilt alarm, lowering and motionalarm.

Two-speed traveling,tour-wheel drive and front axle foating of the whole machine.

Powerful diesel enginewith a maximum gradient of 30%.

With load sensing system and fault diagnosis system.

With emergency pump,emergency lowering and recovery of boom.

Screw-type engine tray, turntable with locking mechanism.

Proportional control	Emergency platform lowering	Auto-leveling
Self-locking door	Tubing explosion-proof	Foot switch
Full height drive	Diagnostic system	Load sensing system
Foam tires	Tilt protection	Hand brake release
Two-wheel drive	Action buzzer	Lanyard attachment points
Two-wheel steer	Electric horn	Tie-down and lifting points
Automatic braking	Time count	Emergency stop
Flashing beacons	Charge protection	Maintenance-free batteries
Rental management platform	GPS

Model	AB14EN
Size	Metric
Maximum Platform height	14 m
Maximum horizontal reach	8 m
Up and over clearance max.	7.02 m

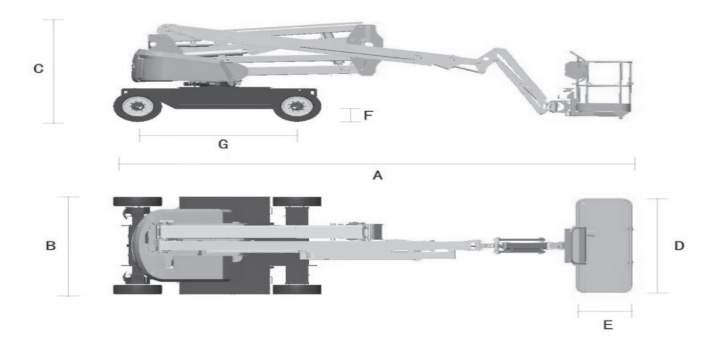

Machine Length	6.4 m
Machine Width	1.75 m
Machine Height	2 m
Platform dimensions (length×width)	1.4×0.7 m
Ground clearance-center	0.22 m
Wheelbase	2 m
Tire size	250-15
Productivity
Working load	230 kg
Working load - restricted	/
Max. platform occupancy	2
Gradeability - stowed	30%
Drive speed - stowed	4.8 km/h
Drive speed - raised	0.8 km/h
Turning radius (inside/outside)	1.5/3.3 m
Tilt sensor activation (front to back/side to side)	3°/4°
Turntable rotation	355°
Platform rotation	160°
Turntable tailswing	0m
Power	48V DC
Hydraulic tank capacity/Fuel volume	320 AH
Weight	6100 kg
