With 80V Dc battery pack, full scale handle control, thumb rocker steering,with functions of performing

confrmation, tilt alarm, lowering and motionalarm.

Two-speed traveling,four-wheel drive and front axle foating of the whole machine.

Powerful diesel enginewith a maximum gradient of 45%.

With load sensing system and fault diagnosis system.

With emergency pump,emergency lowering and recovery of boom.

Screw-type engine tray, turntable with locking mechanism.

Proportional control	Tubing explosion-proof	Load sensing system
Self-locking door	Diagnostic system	Hand brake release
Full height drive	Tilt protection	Lanyard attachment points
Foam tires	Action buzzer	Tie-down and lifting points
Two-wheel drive	Electric horn	Emergency stop
Two-wheel steer	Time count	Maintenance-free batteries
Automatic braking	Charge protection	GPS
Emergency platform lowering	Flashing beacons	Rental management platform
Foot switch	Auto-leveling

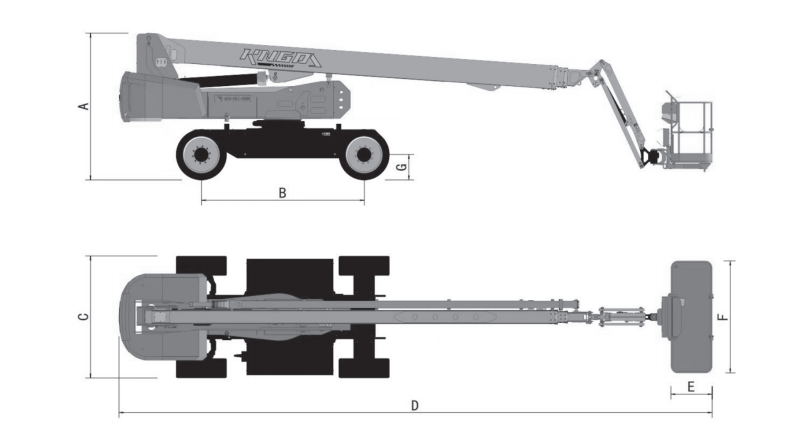

Model	TB26E
Size	Metric
Platform height max.	26.6 m
Horizontal reach max.	22 m
Machine Length	11.65 m
Machine Width	2.49 m
Machine Height	2.93 m
Platform dimensions (length×width)	2.2×0.8 m
Ground clearance-center	0.3 m
Wheelbase	3.2 m
Tire size	385/45-28
Performance
Working load	300 kg
Working load - restricted	450 kg
Max. platform occupancy	2
Gradeability - stowed	45%
Drive speed - stowed	5.5 km/h
Drive speed - raised	0.8 km/h
Turning radius (inside/outside)	3/6.6 m
Tilt sensor activation (front to back/side to side)	5°
Turntable rotation	360°
Platform rotation	160°
Turntable tailswing	1.98m
Power	80V
Hydraulic tank capacity	580 AH
Weight	16500kg
