    With   48V   Dc battery pack, full scale   handle control, thumb rocker steering,with  functions of performing confrmation, tilt alarm, lowering and   motionalarm.

    Two-speed  traveling,four-wheel drive and front axle foating of the whole   machine.
    Powerful  diesel enginewith a maximum gradient of 45%.
    With load   sensing system and fault diagnosis system.
    With   emergency   pump,emergency lowering and   recovery of boom.
    Screw-type   engine tray, turntable with locking   mechanism.


    Proportional   controlTubing   explosion-proof Load sensing   system
    Self-locking   doorDiagnostic systemHand brake release
    Full height   driveTilt protectionLanyard attachment   points
    Foam tiresAction buzzerTie-down and lifting   points
    Two-wheel   driveElectric hornEmergency stop
    Two-wheel   steerTime countMaintenance-free   batteries
    Automatic   brakingCharge protectionGPS
    Emergency   platform loweringFlashing beaconsRental management   platform
    Foot switchAuto-leveling

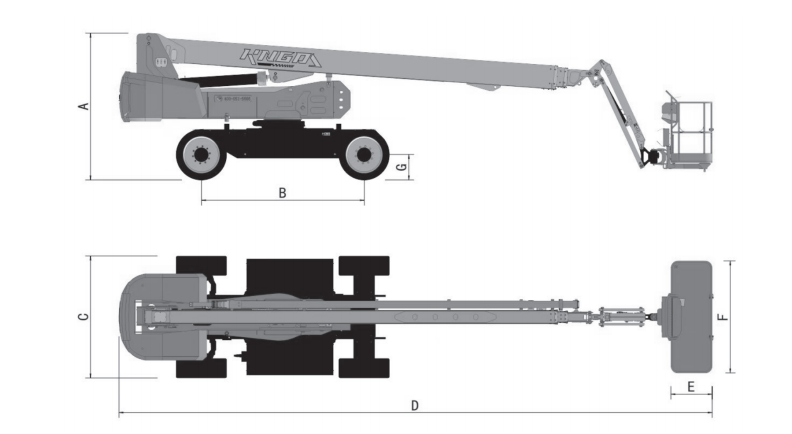

    ModelTB18E
    SizeMetric
    Platform   height max.18 m
    Horizontal   reach max.12.6 m
    Machine Length9.6 m
    Machine   Width 2.49 m
    Machine Height2.64 m
    Platform   dimensions (length×width)1.8×0.76 m
    Ground   clearance-center0.3 m
    Wheelbase2.5 m
    Tire size315/55 D20
    Performance
    Working load300 kg
    Working load -   restricted450 kg
    Max. platform   occupancy2
    Gradeability -   stowed45%
    Drive speed -   stowed4.8 km/h
    Drive speed -   raised0.8 km/h
    Turning radius   (inside/outside) 2.5/5 m
    Tilt sensor   activation (front to back/side to side)3°/4°
    Turntable   rotation360°
    Platform   rotation160°
    Turntable   tailswing1.6m
    Power48V DC
    Hydraulic tank   capacity420 AH
    Weight8700kg
