    Electrophoresis treatment is adopted for the structural parts of the wholevehicle, and the anti-corrosion  performance is more than three times of that of the electrically driven walking of similar products.
    Higher working height at the same number of fork arms.
    Electrically driven walking, more stable travel braking.

    Double load system to maximize the efficiency of equipment use.

    High-strength steel is adopted for key parts to improve the overall strength.
    Standard forklift holes and special lifting points for ease of equipment loading and unloading.
    The design of central fork arm can effectively improve the stability andcomfort of the platform.



    Proportional controlOil tube explosion-proof systemHand brake release
    Platform self-locking doorFault   diagnosis systemLanyard   attachment point
    One-way extension platformTilt   protection systemFixed   and lifting points
    Full travelAction   buzzerStandard   transport forklift holes
    Solid traceless types Electric   horn Work scheduleEmergency   stop system
    Two-wheel driveSafety   maintenance bracing pieceMaintenance   free battery
    Two-wheel steeringCharging   protection systemGPS
    Automatic braking system Stroboscope   lightRemote   monitoring and lease management platform
    Emergency descent systemFixed   guardrailAutomatic   pothole protection

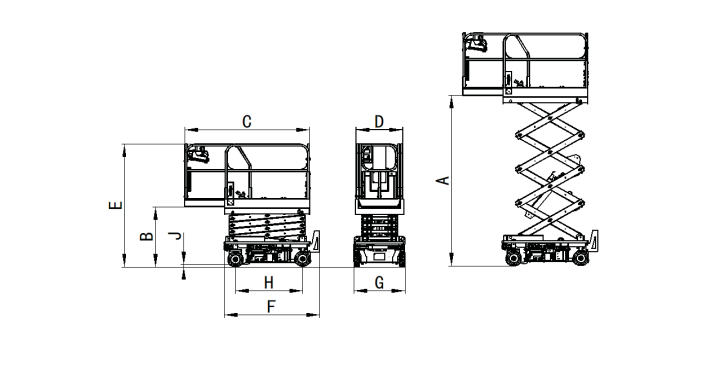

    ModelSS04E
    SizeMetric
    Maximum   Platform Height3.9 m
    Overall   machine length1.47 m
    Overall   machine width0.76 m
    Overall machine height (fence not folded)1.9 m
    Overall machine height (fence folded)1.66 m
    Working   platform size (length × width)1.3×0.7 m
    Platform   extension size0.6 m
    Minimum ground   clearance (stow/lift)0.07/0.02 m
    Wheelbase1.06 m
    tire0.23×0.08 m
    Performance
    working Load230 kg
    Working Load -   Extended Platform100 kg
    Maximum number   of workers (indoor/outdoor)2/0
    Maximum   climbing ability25%
    Driving speed   - Stowed3.5 km/h
    Driving speed-   Raised0.8 km/h
    Minimum   turning radius (inner/outer wheel)0.4/1.55 m
    Maximum   allowable working angle (front and back/left and right)3°/1.5°
    Rising/Falling   speed20/24 s
    power24V DC
    battery   capacity80 AH
    Total Weight920 kg
